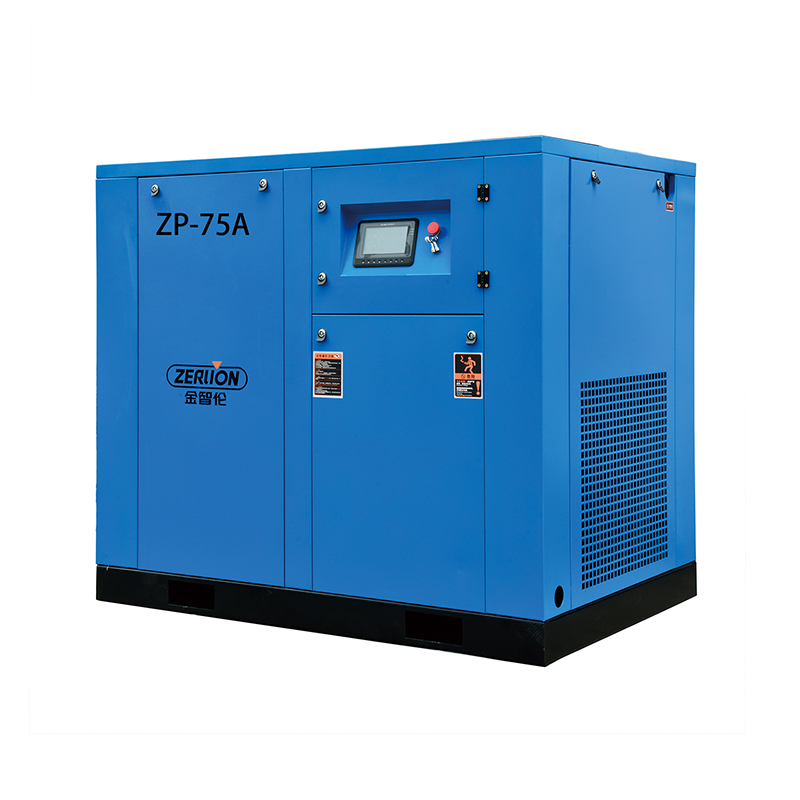

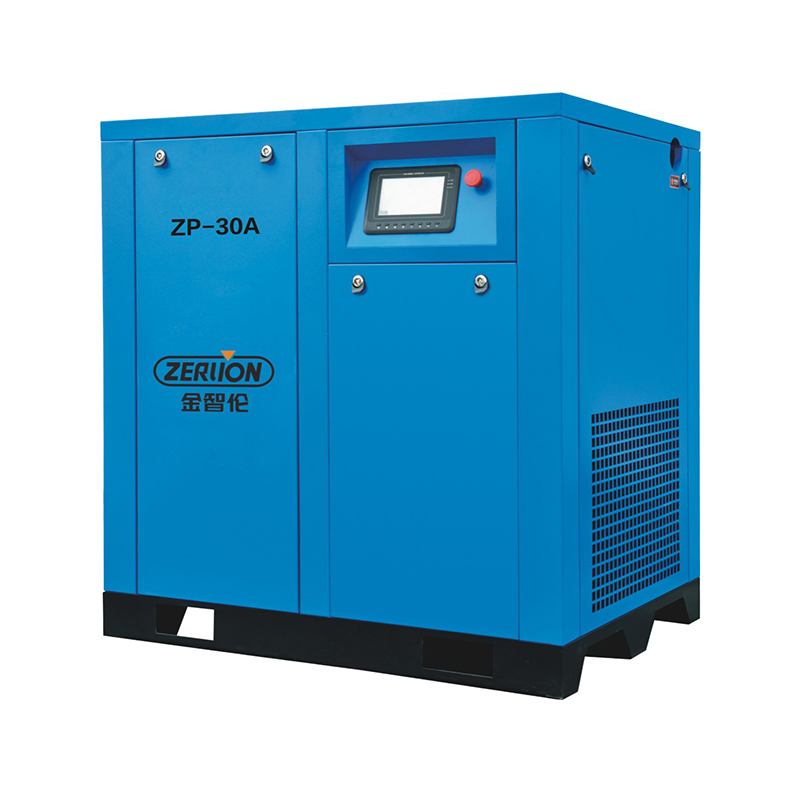

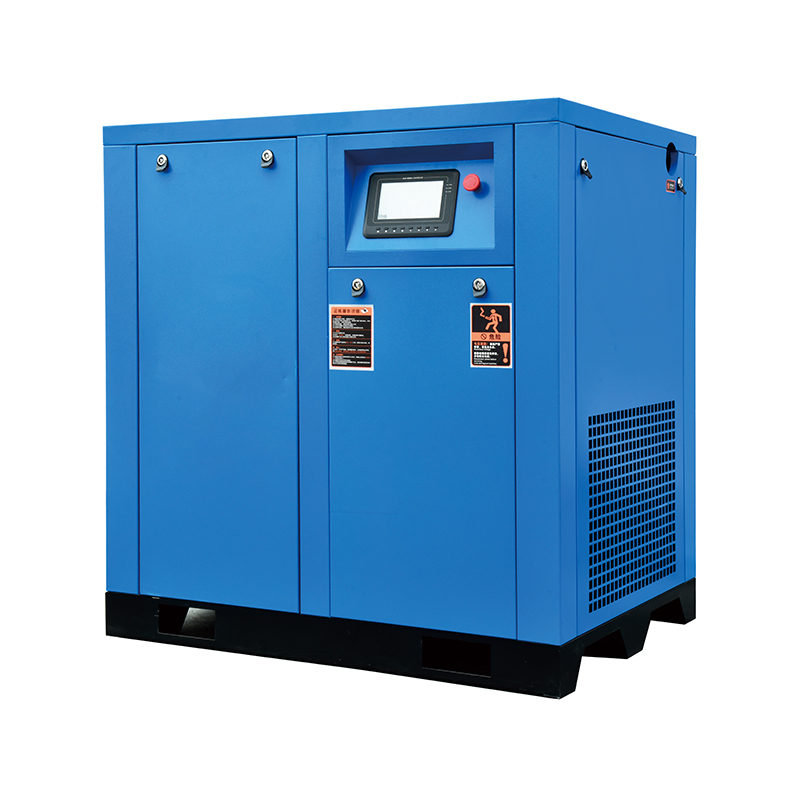

VSD PM Split-Design Screw Air Compressor

The Permanent Magnet Synchronous Motor (PMSM) is the fundamental element that distinguishes this type of compressor from traditional induction motor models. The motor rotor features embedded rare-earth Neodymium-Iron-Boron (NdFeB) permanent magnets; these generate a high-intensity magnetic field without the need for external excitation current, thereby fundamentally eliminating the energy losses—specifically rotor copper losses—inherent in asynchronous motors.

Compared to traditional variable-frequency induction motors, permanent magnet motors maintain high operating efficiency across a wide speed range, with their efficiency advantages becoming particularly pronounced under low-load operating conditions. Relative to fixed-speed compressors, permanent magnet variable-frequency systems precisely match motor speed to actual air demand, enabling energy consumption reductions of approximately 20% to 30%; under certain specific operating conditions, the energy-saving effects can be even more significant.

Another key characteristic of permanent magnet motors is their high power density. These motors are capable of generating higher torque output within a smaller physical volume; this means that, for a given power rating, the overall compressor unit can be designed with a much more compact footprint. This feature holds practical significance for production facilities where installation space is limited.

Split Design: An Engineering Approach Optimized for Ease of Maintenance

The "Split Design" represents a crucial engineering feature that enhances the practical utility of this compressor model. The screw air-end (compressor block) and the permanent magnet motor are arranged in an independent, split configuration, connected via a high-precision flexible coupling; this design establishes a clear structural separation between the air-end and the motor.

This split-coupling direct-drive architecture allows the air-end and motor to be disassembled independently. Consequently, routine maintenance and repairs do not require the complete dismantling of the entire compressor unit, thereby significantly reducing the complexity of service operations and minimizing downtime.

Compared to integrated, co-axial designs where the motor and air-end share a common shaft, the split design offers distinct engineering advantages in the following areas:

• Enhanced Maintainability: If either the air-end or the motor requires inspection or repair, that specific component can be disassembled and serviced independently without compromising the structural integrity of the other component. This approach lowers the technical skill threshold required for maintenance tasks and reduces associated labor costs.
• Independent Thermal Management: The air-end and the motor each possess their own dedicated cooling channels, ensuring that their respective thermal loads do not interfere with one another. This helps maintain optimal operating temperatures—even during continuous, high-load operation—thereby extending the service life of the compressor's lubricating oil and sealing components.
• Convenient Alignment Adjustment: The split-structure design allows for re-alignment and calibration following installation or maintenance. This ensures that the coupling's coaxiality meets required specifications, thereby preventing vibration and abnormal bearing wear caused by alignment deviations.

Variable Frequency Control: An Energy-Saving Logic for Precise Speed ​​Regulation

The variable frequency drive system serves as the control core enabling energy-efficient operation in this type of compressor model. An intelligent controller monitors pipeline pressure signals in real-time, utilizing a variable frequency inverter to dynamically adjust the motor speed. This ensures that the compressor's air output precisely matches actual air demand, thereby eliminating the energy waste associated with the frequent loading and unloading cycles typical of traditional fixed-frequency models during low-load conditions.

Permanent magnet variable frequency air compressors offer stepless, continuous air volume regulation across a range of 30% to 100%. By automatically adjusting power consumption in response to fluctuations in the user's compressed air demand, these units effectively reduce operating costs.

Variable frequency control also delivers a smoother pressure output. The system maintains the air supply pressure within a narrow band centered around a preset target value. This eliminates the additional energy consumption—and associated costs—that typically results from the frequent loading and unloading cycles of standard air compressors as they oscillate between demand pressure and peak pressure levels. Furthermore, this stable, constant-pressure air supply helps extend the service life of the equipment and mitigates the adverse effects that pressure instability can have on downstream machinery. Kotech Compressor

Application Comparison: Permanent Magnet Split-Type vs. Other Common Models

Applicable Industries and Typical Application Scenarios

Thanks to their high energy efficiency and convenient maintenance features, Permanent Magnet Split-Type Variable Frequency Drive (VFD) Screw Air Compressors offer significant value and suitability in the following industrial sectors:

• Electronics & Semiconductor Manufacturing: Air demand on production lines fluctuates significantly as processes change. VFD speed control allows for precise matching of real-time air requirements, ensuring stable air supply while simultaneously achieving energy-efficient operation.
• Automotive Parts Processing: Multiple pneumatic tools are used alternately across various workstations, resulting in significant fluctuations in overall air demand. Permanent magnet VFD models demonstrate particularly outstanding energy-saving advantages under such operating conditions.
• Food & Beverage Processing: These sectors have specific requirements regarding the cleanliness and stability of compressed air supply. The brushless design of permanent magnet motors reduces internal sources of contamination, thereby helping to maintain high air quality.
• Textile & Dyeing Industry: Production involves a mix of continuous operations and intermittent air usage. VFD regulation capabilities effectively adapt to changing air demand, thereby reducing energy consumption during unloaded operation periods.
• Chemical & Pharmaceutical Production: Manufacturing processes often require highly stable air supply pressure. The VFD constant-pressure control mode keeps pressure fluctuations within a very narrow range, effectively meeting the precise air supply requirements of sophisticated manufacturing processes.
