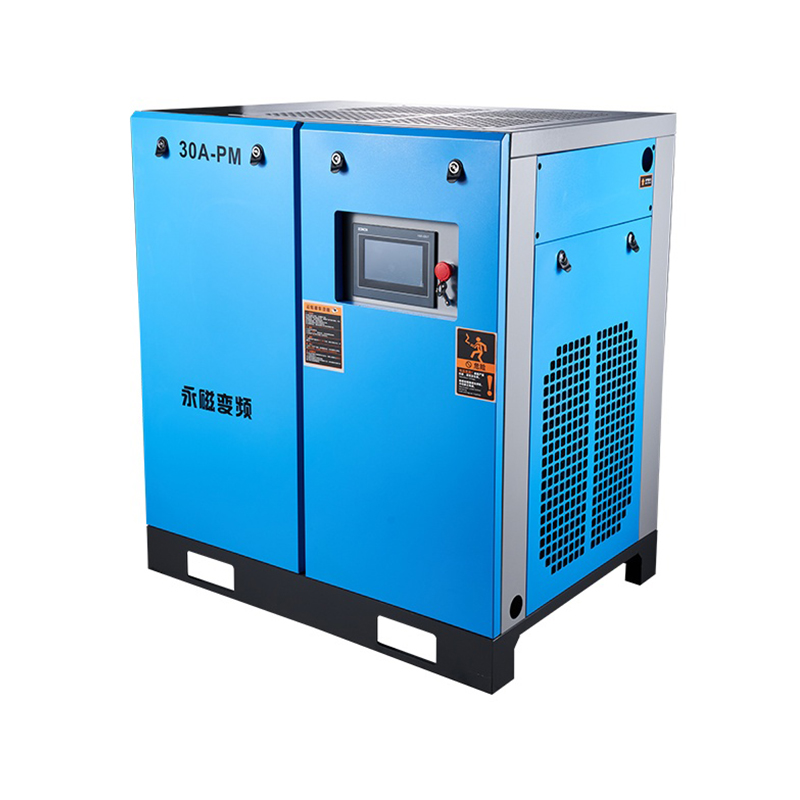

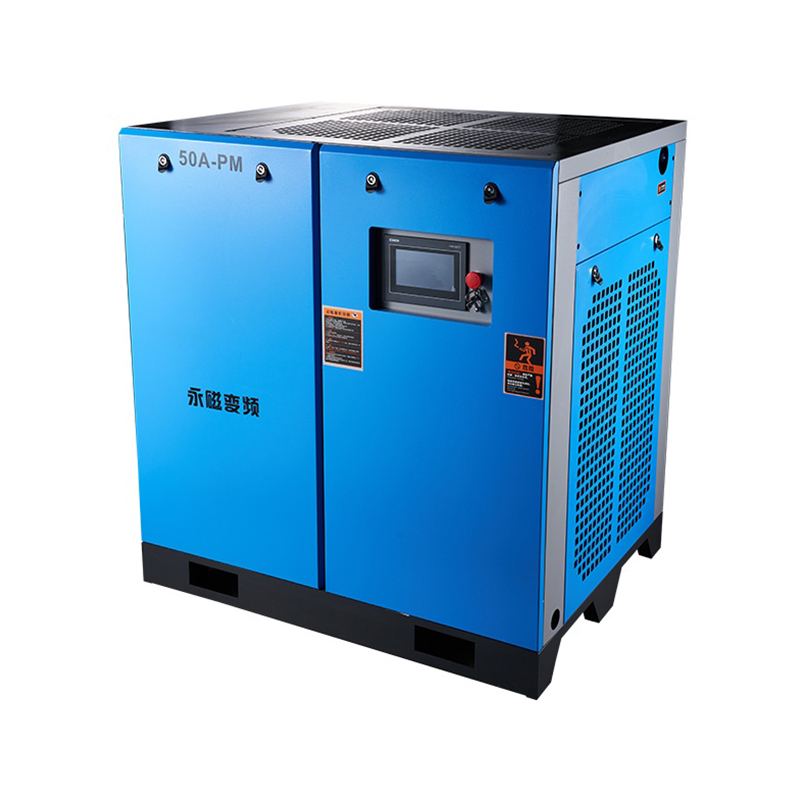

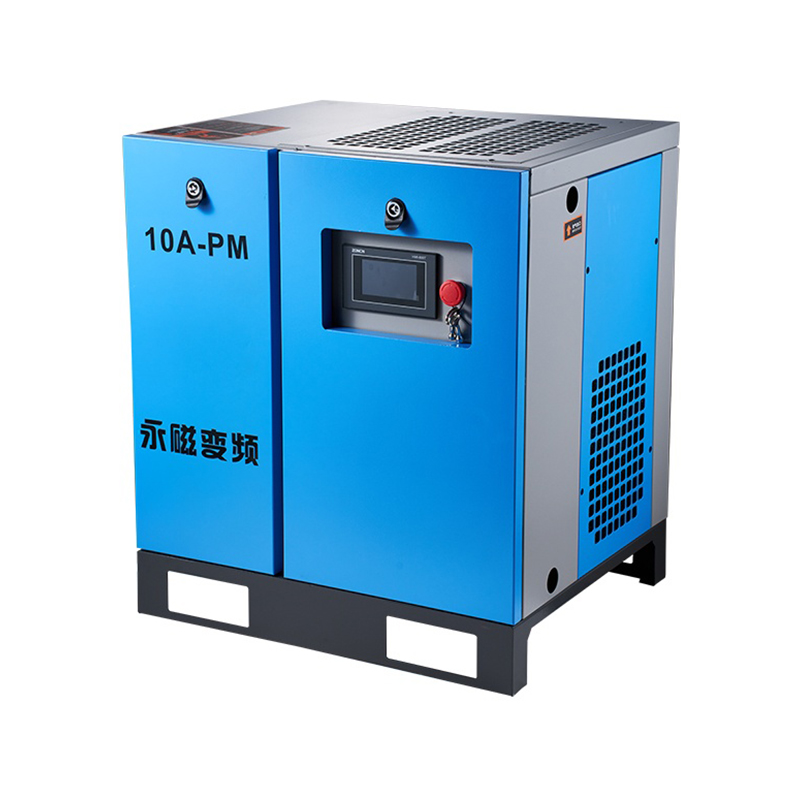

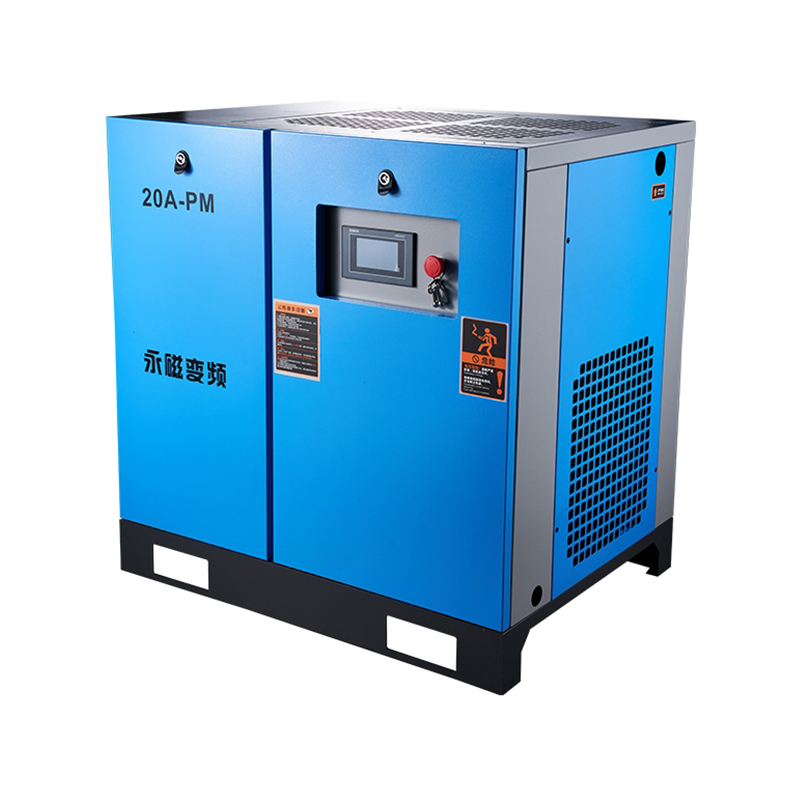

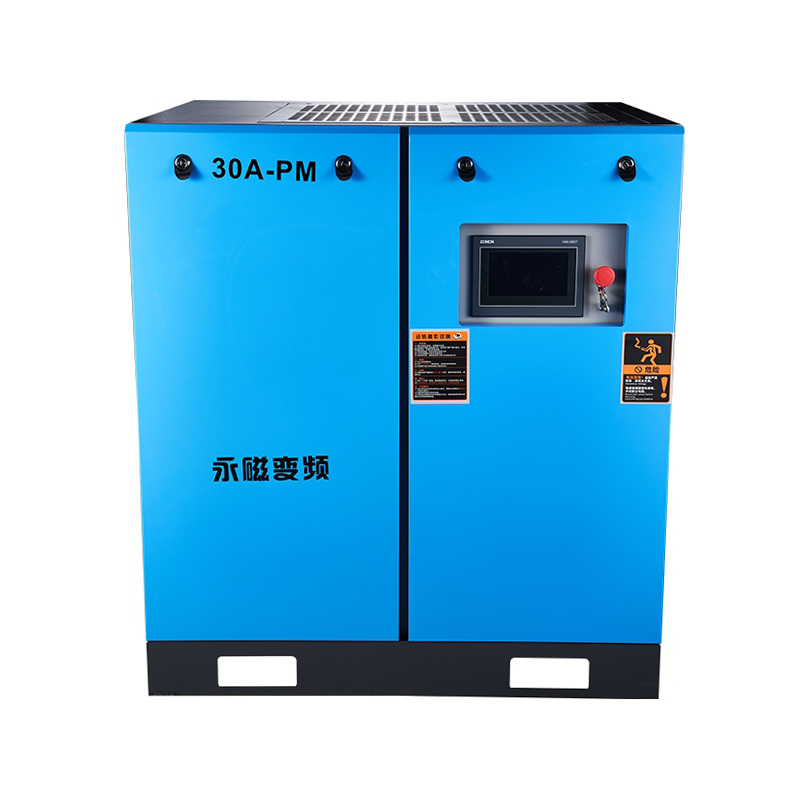

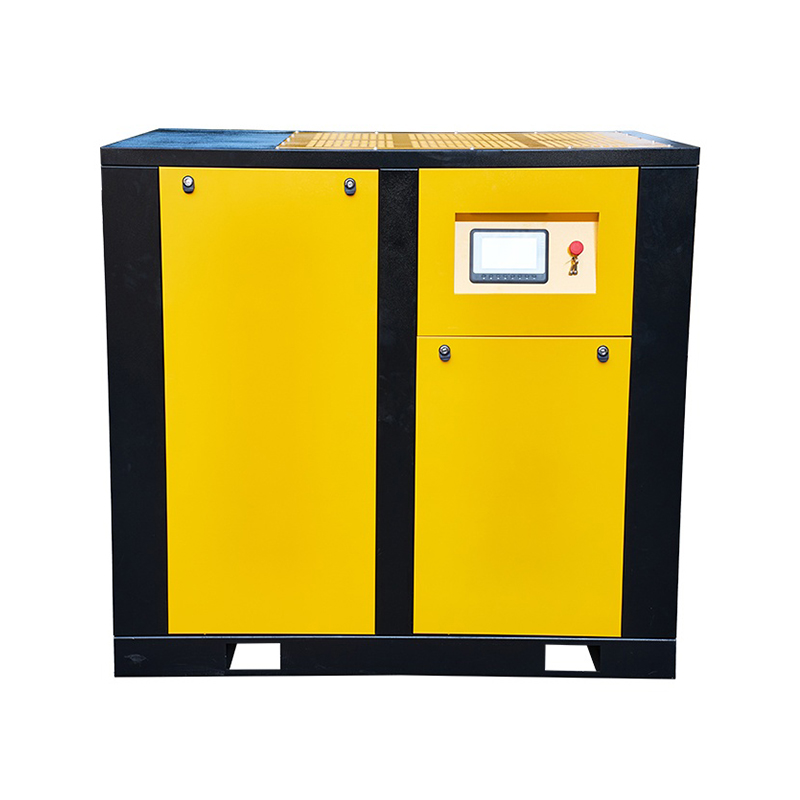

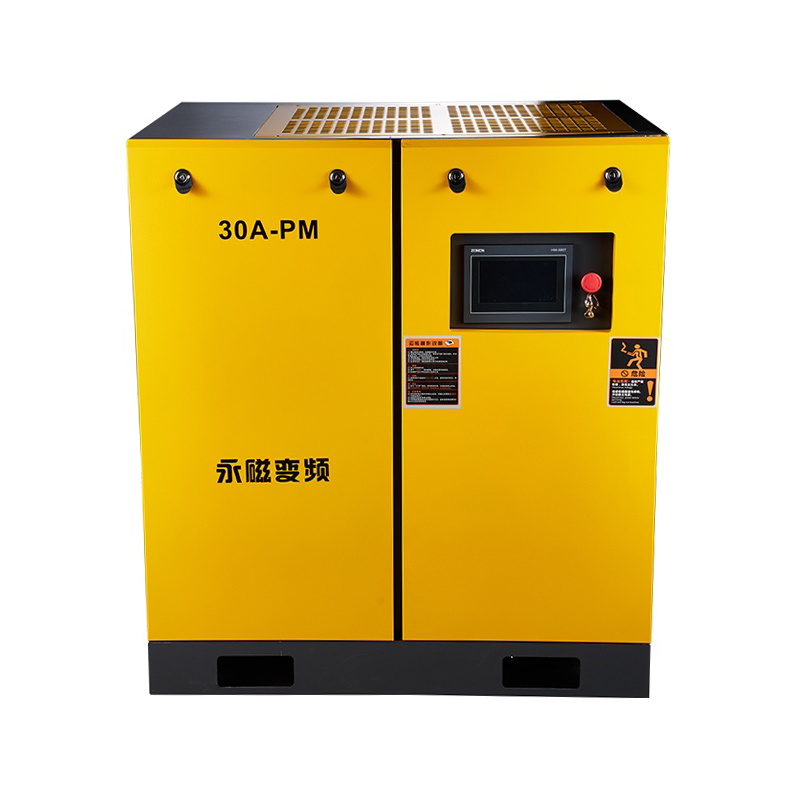

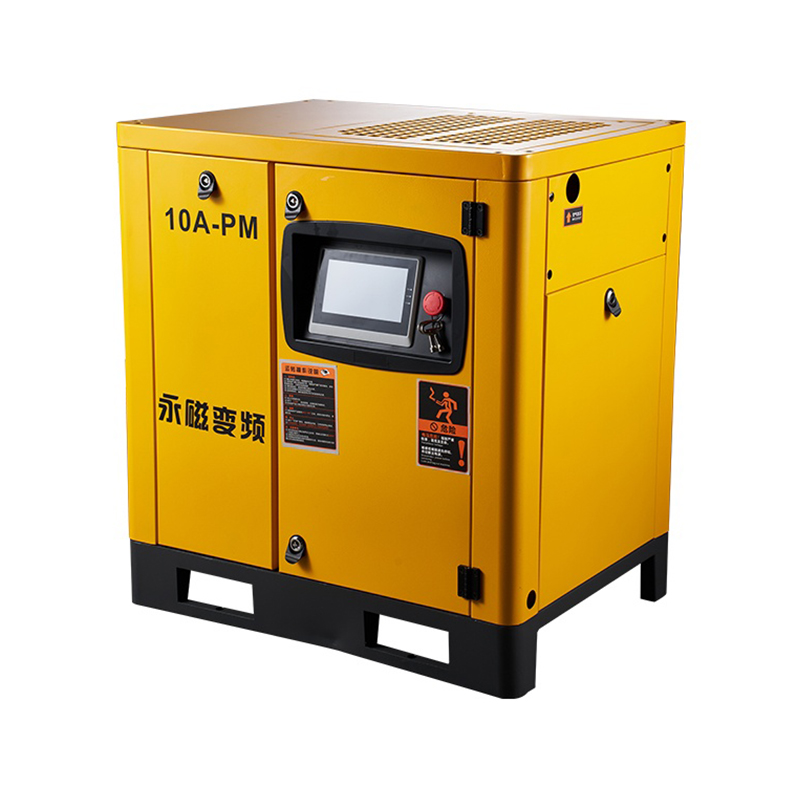

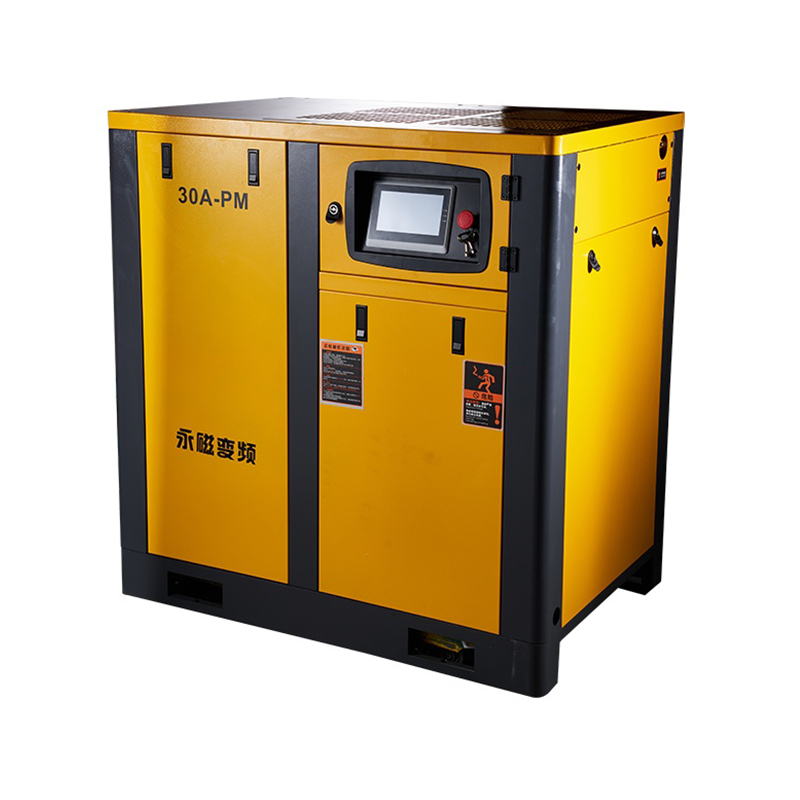

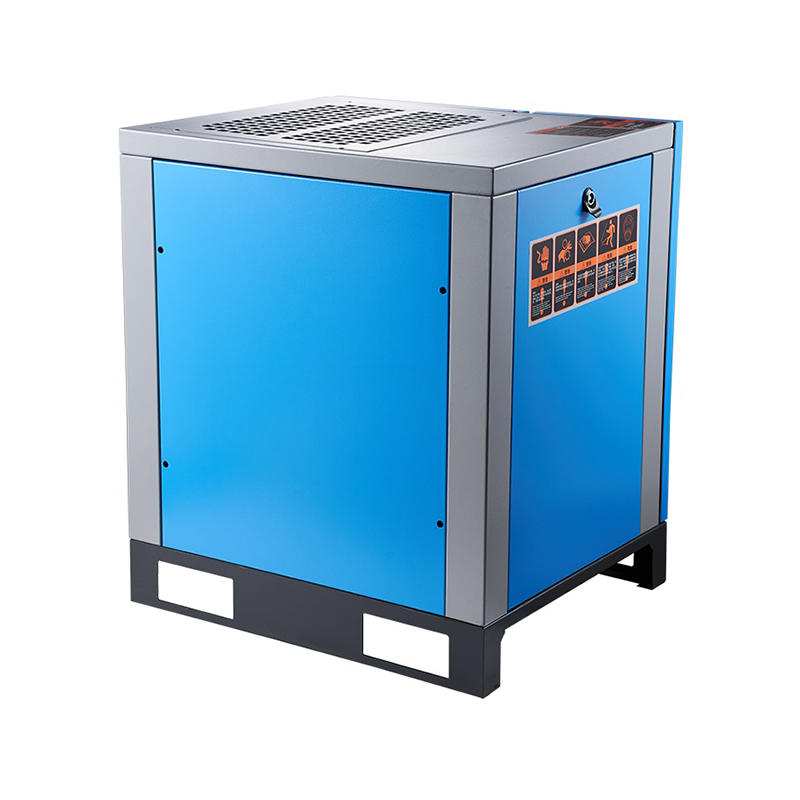

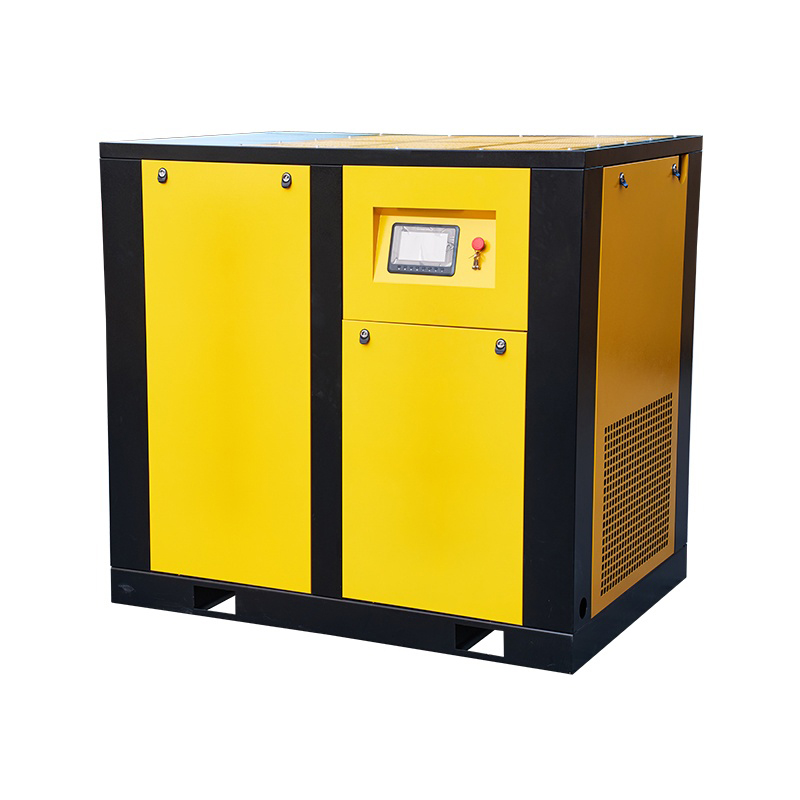

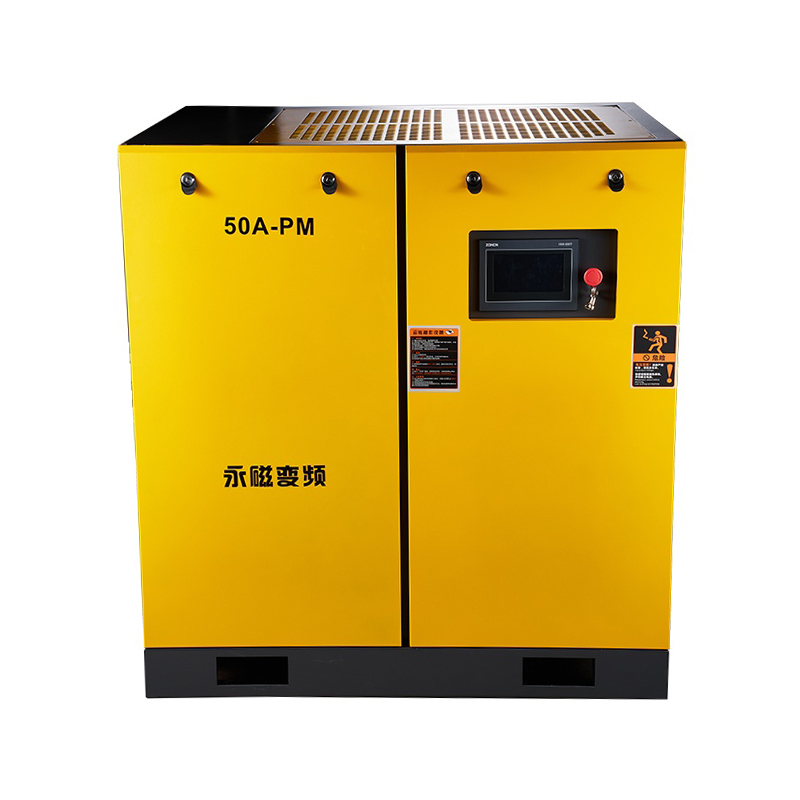

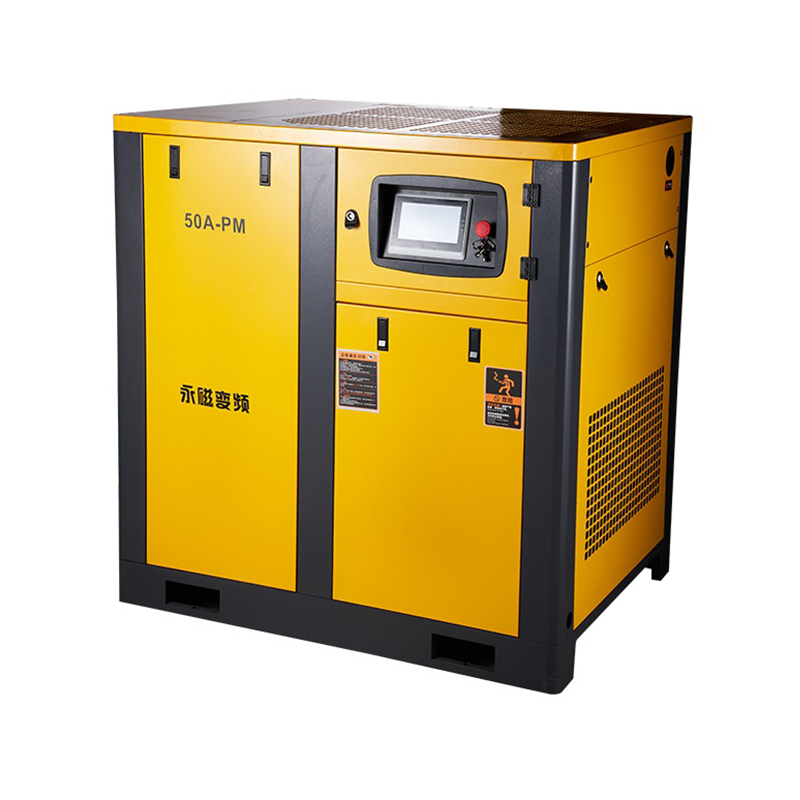

VSD PM Coaxial Integration Screw Air Compressor

The Integrated Coaxial Permanent Magnet Variable Frequency Screw Air Compressor is a variable-frequency-driven air compression system that seamlessly combines a permanent magnet motor and a screw air-end through a coaxial, integrated design. Unlike traditional belt-driven or coupling-driven systems, this integrated coaxial design completely eliminates intermediate transmission links, enabling the direct transfer of power from the motor to the air-end. This significantly reduces mechanical transmission losses and results in a substantial improvement in the overall operating efficiency of the unit.

1. Permanent Magnet Motor: Enduring Efficiency

The permanent magnet motor utilizes high-performance permanent magnet materials, ensuring magnetic stability under continuous operating conditions with zero risk of demagnetization; its service life exceeds 15 years. Compared to asynchronous induction motors, the permanent magnet motor maintains a high power factor and efficiency across both full-load and partial-load conditions, serving as a core component for achieving long-term energy savings.

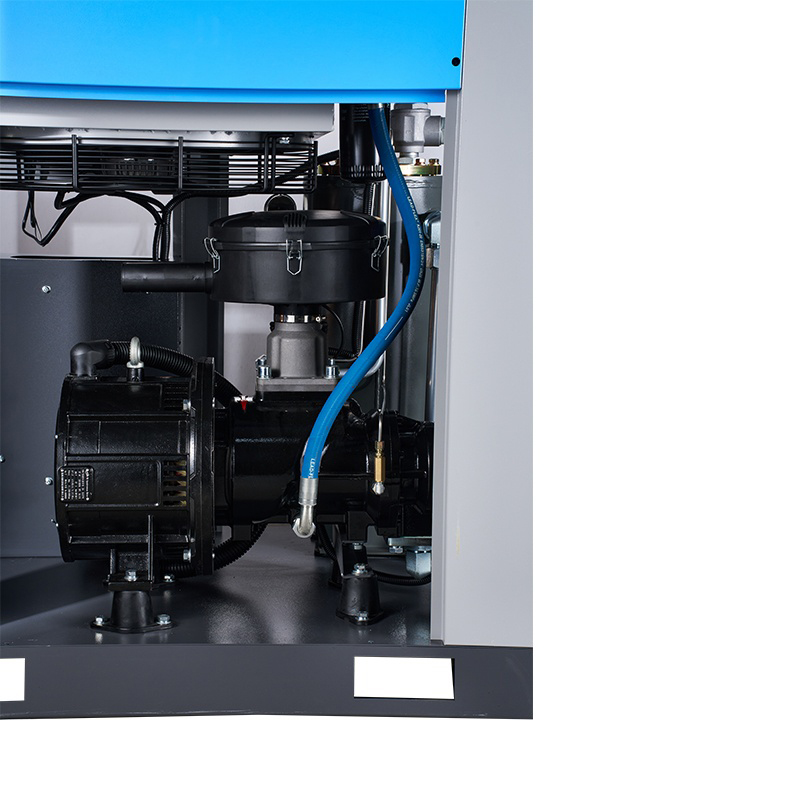

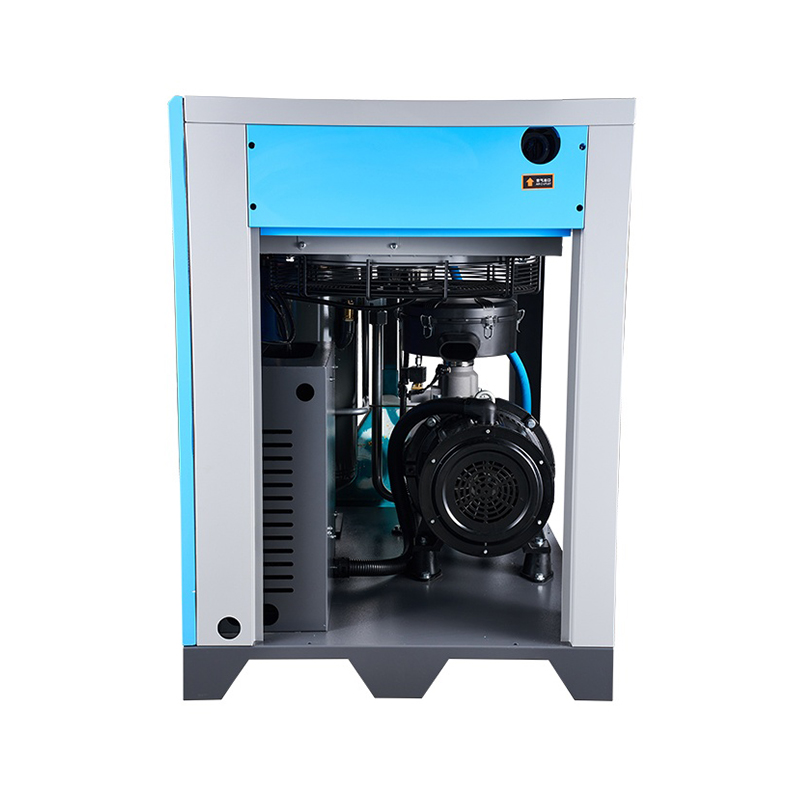

2. Integrated Coaxial Structure: Zero Transmission Loss

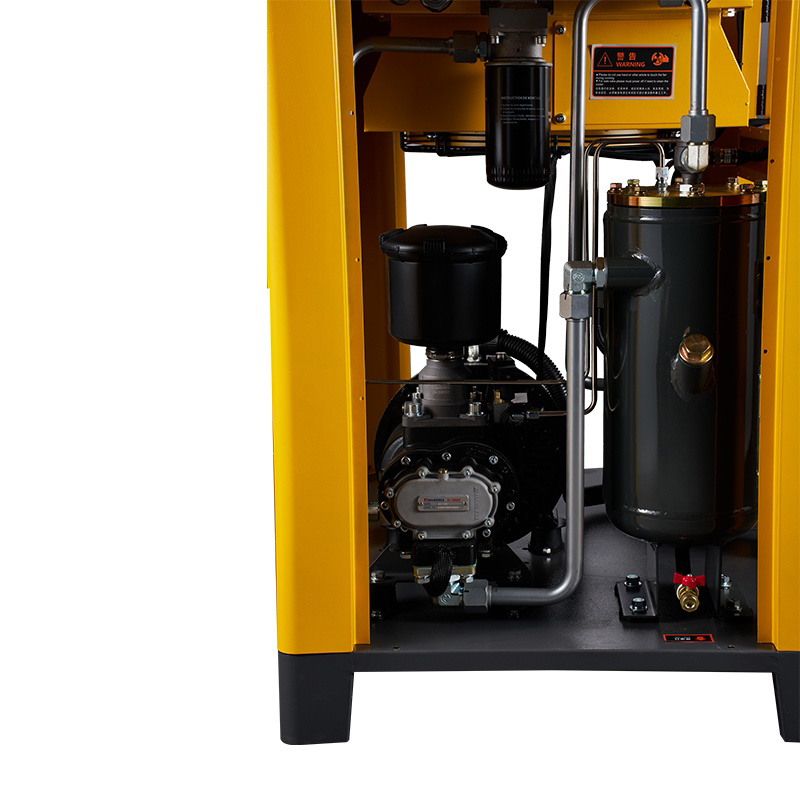

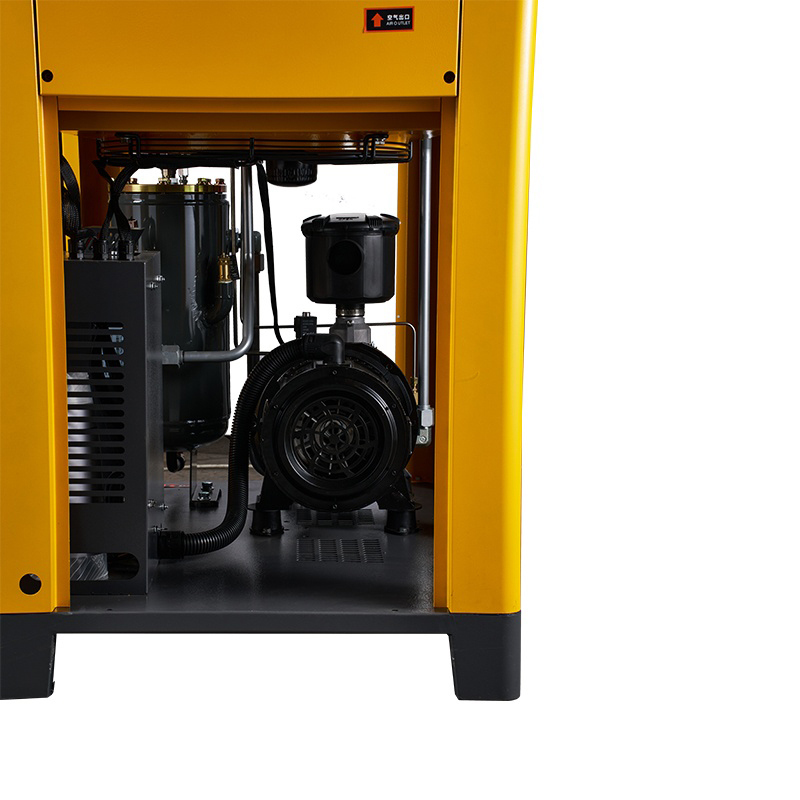

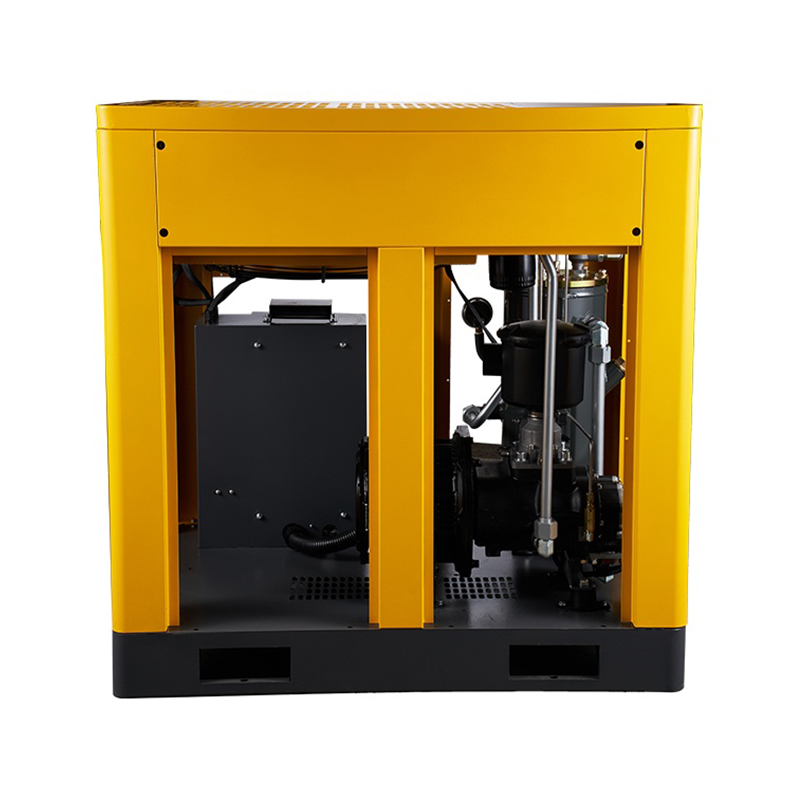

The integrated coaxial design directly couples the air-end with the motor, eliminating the need for transmission components such as belts or couplings, thereby eradicating transmission friction losses at the source. This results in a more compact overall structure, a reduced footprint, fewer maintenance points, and more reliable and stable operation.

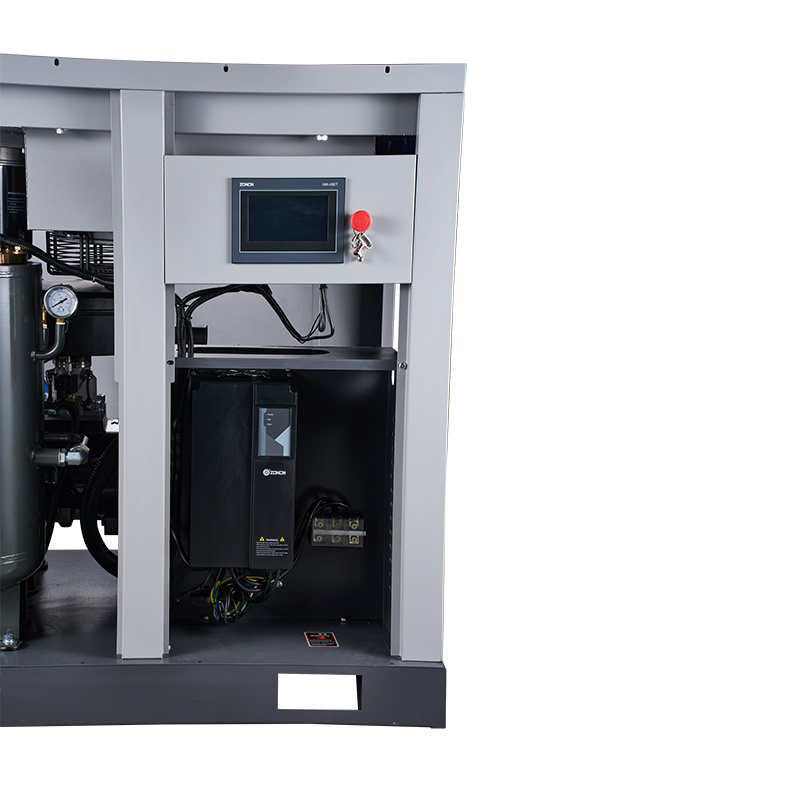

3. Variable Frequency Control: On-Demand Air Supply

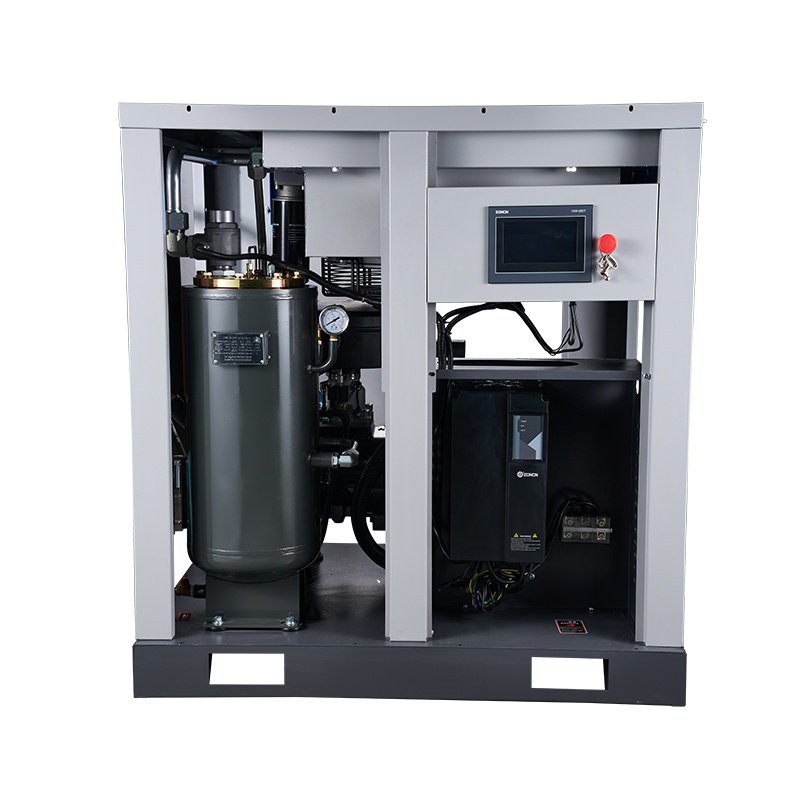

Equipped with a high-performance variable frequency drive (VFD), the air compressor can adjust its rotational speed in real-time based on actual air demand, ensuring a precise match between air supply and consumption. This effectively eliminates the energy waste associated with "oversized motors driving undersized loads." During system startup, the current rises smoothly, effectively protecting both the power grid and mechanical components while extending the overall service life of the unit.

4. Energy-Efficient Screw Air-End: Superior Volumetric Efficiency

The air-end features a new, energy-efficient helical rotor profile design. By utilizing large rotors operating at lower speeds, the system increases air displacement per unit of time. Compared to standard models, the energy consumption per unit of compressed air is significantly reduced, resulting in an overall energy-saving effect that is approximately 30% higher than that of fixed-frequency models.

5. Pressure Maintaining Valve: Guaranteed Lubrication

Constructed from rust-proof and corrosion-resistant aluminum alloy, the pressure maintaining valve features a built-in one-way check function. During the system startup phase, it prioritizes the establishment of internal circulation pressure within the air-end, ensuring that the lubrication system is fully operational before the rotors begin to spin. This effectively protects the air-end from premature wear and tear.

Key Technical Parameters Comparison Table

Applicable Industries and Scenarios

The Permanent Magnet Coaxial Integrated Variable Frequency Screw Air Compressor is suitable for industrial settings requiring a continuous and stable air supply, particularly those with high demands for energy consumption management. These include, but are not limited to:

• Machining Industry: Air sources for driving pneumatic tools and CNC equipment.
• Food and Beverage Industry: Scenarios requiring oil-free, clean compressed air.
• Textile and Dyeing Industry: Operations involving long-duration continuous air usage and significant load fluctuations.
• Automotive Manufacturing Industry: Comprehensive air supply requirements for processes such as painting, welding, and pneumatic conveying.
• Electronics and Semiconductor Industry: Precision processes requiring high stability in air pressure.

Key Considerations When Purchasing a Variable Frequency Screw Air Compressor

When selecting a Permanent Magnet Variable Frequency Screw Air Compressor, it is recommended to conduct a comprehensive evaluation based on the following dimensions: First, daily average air consumption and usage fluctuation patterns—variable frequency units demonstrate their most significant energy-saving advantages in scenarios with highly variable load demands. Second, equipment installation space and heat dissipation conditions—while the coaxial integrated unit features a compact footprint, it requires adequate ventilation to ensure proper cooling. Third, convenience of future maintenance—the belt-free structure helps reduce consumable costs. Fourth, quality certifications and after-sales service systems—essential for ensuring the equipment's long-term, stable operation.

The Permanent Magnet Coaxial Integrated Variable Frequency Screw Air Compressor represents the current developmental trend in industrial air compression equipment—specifically toward greater energy efficiency, compactness, and intelligence. The coaxial integration eliminates transmission losses; the permanent magnet motor ensures high efficiency across the entire operating range; and the variable frequency control enables precise load matching. The combined energy-saving effects resulting from the synergy of these three elements give this technology a strong competitive edge within the industrial air supply sector. For enterprises currently planning or upgrading their compressed air systems, the Permanent Magnet Variable Frequency Screw Air Compressor is a solution well worth exploring and seriously considering.
