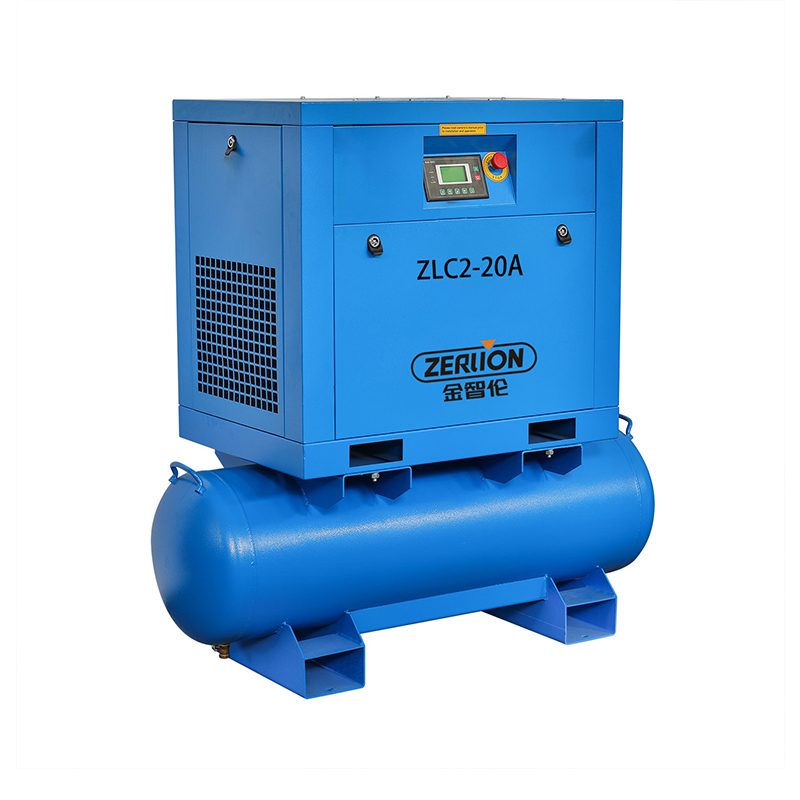

Two-in -One Screw Air Compressor

The "Two-in-One" Screw Air Compressor integrates the screw compression unit and the refrigerated air dryer within a single physical housing. By adopting an integrated design philosophy, it effectively resolves the common pain points associated with traditional split systems—such as complex piping layouts, large spatial footprints, and lengthy installation cycles—and has emerged as an increasingly popular air supply solution for small to medium-sized industrial applications.

What is a Two-in-One Screw Air Compressor?

A Two-in-One Screw Air Compressor is a composite device that seamlessly integrates a screw compressor with a refrigerated air dryer. Traditional air supply systems typically require the separate procurement of a compressor and a dryer, followed by their interconnection via external piping; this process is not only cumbersome to install but also demands additional space for equipment placement and significant investment in piping engineering.

Through factory-level system integration, the Two-in-One model ensures that these two core functional modules are precisely coupled and aligned prior to leaving the factory. Upon receiving the equipment, users simply need to connect the power supply and the air outlet piping to put the unit into operation immediately. This "plug-and-play" design approach significantly reduces the time and labor costs associated with project deployment—a benefit of tangible value for manufacturing facilities operating on tight production schedules.

The Necessity of an Integrated Drying System

The presence of moisture in compressed air is an unavoidable physical phenomenon. When ambient air is compressed, the concentration of water vapor within it increases; if this air enters the production piping network directly without undergoing a drying process, it can lead to a host of potential problems:

• Accelerated corrosion of the internal walls of pipelines and pneumatic components, thereby shortening equipment service life.
• In winter conditions with low temperatures, accumulated water within pipelines may freeze, leading to air circuit blockages or cracked pipe fittings.
• Moisture-laden air compromises the quality of processes that demand high levels of air purity—such as spray painting, electronic assembly, and food processing.
• Pneumatic control valves and precision instrumentation may experience operational anomalies or measurement deviations due to moisture ingress.

A refrigerated air dryer functions by cooling compressed air to a temperature below its dew point, causing the water vapor to condense and precipitate out for subsequent discharge, thereby delivering dry and clean compressed air. By integrating this drying process directly into the compressor unit itself, the system ensures that the air has undergone complete dehumidification before exiting the equipment, thereby guaranteeing the quality of the air supply right from the source.

Core Advantages of 2-in-1 Integrated Models

• Space Savings: The integrated chassis consolidates the functions of two separate units onto a single base, significantly reducing the overall footprint compared to split-system solutions—ideal for workshops with limited floor space.
• Simplified System Piping: By eliminating external connecting lines between the compressor and the dryer, the number of pipe joints is reduced. This lowers the risk of air leaks and gives the entire air supply system a cleaner, more organized appearance.
• Verified System Compatibility: The compressor and dryer undergo comprehensive system commissioning at the factory prior to shipment. Their air-handling capacities, thermal profiles, and control logic are fully synchronized, thereby preventing potential performance mismatches that can arise when users attempt to pair components independently.
• Centralized Maintenance Management: With a single unit performing both compression and drying functions, routine maintenance points are centralized. This simplifies the management of maintenance records and is particularly beneficial for small and medium-sized enterprises (SMEs) with limited equipment management resources.
• Short Deployment Cycle: The factory-integrated, pre-assembled solution minimizes on-site construction work, shortening the interval between equipment delivery and the commencement of formal production, thereby accelerating project implementation timelines.

Functional Comparison: 2-in-1 Integrated Screw Air Compressor vs. Separate Units

Applicable Industries and Scenarios

Thanks to their ability to deliver clean air and their compact, integrated design, 2-in-1 screw air compressors are highly suitable for the following industries and applications:

• Electronics & Semiconductors: Production environments in this sector demand strict standards for air purity; dry, oil-free compressed air is a fundamental prerequisite for ensuring high product yield rates.
• Food & Beverage Processing: Compressed air that comes into direct or indirect contact with food and beverage products must comply with stringent hygiene standards; drying the air is a fundamental requirement in this context.
• Spray Painting and Surface Treatment: Moisture in compressed air can lead to paint film blistering and reduced adhesion; a stable supply of dry air is crucial for ensuring high-quality coating results.
• Medical Device Manufacturing: The production environment for medical devices demands a highly reliable source of clean air; integrated drying solutions help simplify air supply management and enhance system reliability.
• Automotive Parts Processing: Continuous production lines require both exceptional air supply stability and high air quality; "two-in-one" integrated models are capable of delivering a stable, reliable source of clean compressed air.

Purchasing Considerations of two-in-one screw air compressor

Before purchasing a two-in-one screw air compressor, it is recommended to carefully verify the following key points:

• Matching Drying Capacity with Air Output: Confirm that the air processing capacity of the built-in dryer aligns with the rated discharge volume of the compressor unit to prevent insufficient drying capacity from resulting in an elevated outlet dew point.
• Pressure Dew Point Specifications: Based on the specific air dryness requirements of your production processes, verify that the equipment's nominal pressure dew point value meets your actual operational standards.
• Environmental Temperature Adaptability: Drying efficiency is influenced by ambient temperature; if the unit is to be installed in a high-temperature workshop, ensure that the equipment's specified operating temperature range is suitable for the environment.
• Future Expansion Planning: If there is a possibility of expanding production scale in the future, evaluate in advance whether the current integrated model supports capacity expansion or if a larger-capacity unit would be required.
