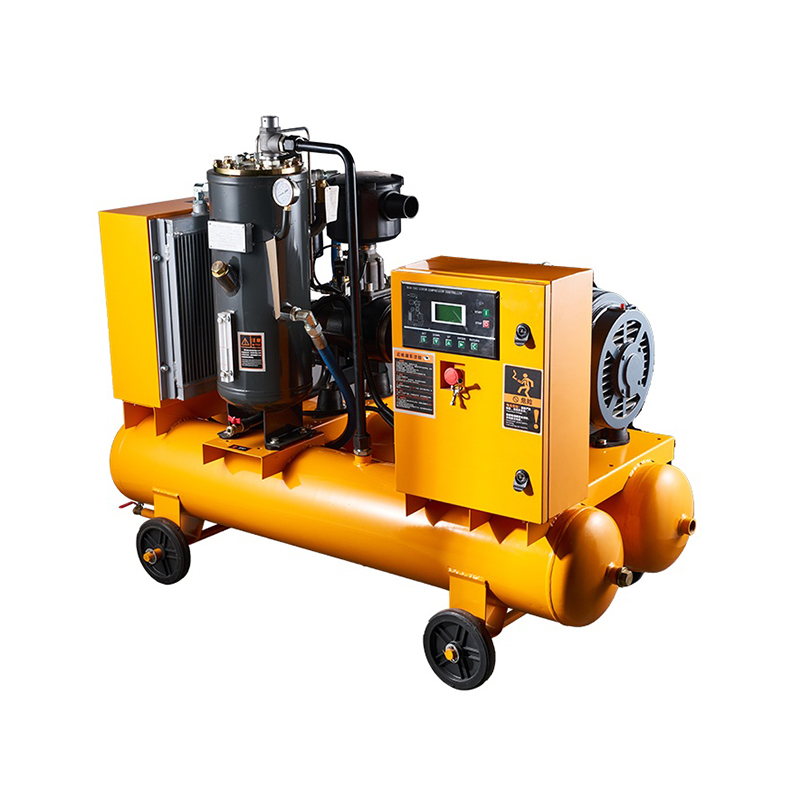

Dual-Tank Direct-Drive Combined Screw Compressor

The Dual-Tank Direct-Drive Combined Screw Air Compressor integrates a dual-receiver design, direct-drive transmission technology, and a multifunctional integrated architecture. It offers a compact, reliable, and complete solution for industrial applications requiring a continuous and stable air supply.

Dual-Tank Design: The Structural Foundation for Stable Air Supply

Traditional single-tank compressors often suffer from pressure fluctuations caused by insufficient storage capacity—particularly under operating conditions with significant variations in air demand—thereby compromising the operational stability of downstream pneumatic equipment. The dual-tank design fundamentally resolves this issue by utilizing two air receivers operating in parallel, effectively doubling the system's total air storage volume.

The core advantages of this dual-tank configuration are evident in the following aspects:

• Smoother Pressure Output: The larger storage volume effectively dampens pressure fluctuations that occur during compressor start-stop cycles, ensuring that pressure within the air supply network remains within a stable range. This minimizes the adverse impact that unstable pressure can have on precision pneumatic components.
• Significantly Reduced Start-Stop Frequency: The increased air storage capacity allows the compressor to sustain air delivery for longer periods after each charging cycle. This reduces the frequency of motor start-stop cycles, thereby minimizing heat accumulation within the motor windings caused by frequent switching and helping to extend the service life of the machine's electrical system.
• Enhanced Continuous Operation Capability: For processes requiring a continuous supply of high-volume airflow—such as spray painting, pneumatic stamping, and cylinder-driven operations—the dual-tank design provides a more ample air buffer, reducing production interruptions caused by delays while waiting for the system to recharge.

Direct-Drive Technology: The Engineering Guarantee for Transmission Efficiency

The direct-drive transmission method constitutes another core technical feature of this dual-tank combined compressor model. The motor shaft is connected directly to the rotor of the screw air-end via a high-precision coupling. By eliminating intermediate transmission components—such as pulleys and gears—the transmission path is significantly shortened, thereby minimizing energy loss to the lowest possible level.

Compared to traditional belt-driven systems, the direct-drive structure offers distinct advantages from a practical engineering perspective:

• Higher Transmission Efficiency: The motor's output torque is applied directly to the screw rotor; with no energy loss caused by belt slippage or tension, the overall energy efficiency of the machine remains consistently stable.
• Reduced Maintenance Workload: Belts are high-frequency consumables in traditional compressors; the direct-drive structure completely eliminates periodic maintenance tasks such as belt tension checks and belt replacements, thereby lowering daily operation and maintenance costs.
• Minimized Operational Vibration: The direct-coupling connection method avoids the periodic vibrations typically caused by belt drives, resulting in smoother overall machine operation and relatively relaxed requirements for the installation foundation.
• Compact Structural Layout: Eliminating the need for belt guards and tensioning mechanisms—and featuring an axial alignment of the motor and main compressor unit—optimizes the machine's longitudinal dimensions, making it ideal for production sites with limited installation space.

Integrated Modular Architecture: A One-Stop System Solution

In terms of structural design, the dual-tank, direct-drive integrated screw compressor emphasizes comprehensive system integration. It typically consolidates the following functional modules onto a single frame platform:

• Screw Compressor Unit: Responsible for drawing in ambient air and compressing it to the set pressure; it serves as the core power unit of the entire system.
• Dual Air Receivers: Provide ample buffer volume for compressed air, stabilizing the system's supply pressure while simultaneously performing the preliminary separation of moisture and oil mist from the compressed air.
• Refrigerated Dryer System (Integrated in select models): Cools the compressed air below its dew point to condense and discharge water vapor, thereby providing a dry and clean air source suitable for industrial processes with specific air quality requirements.
• Precision Filtration Assembly: Features a multi-stage filtration structure that progressively removes solid particles, oil mist, and trace moisture from the compressed air, ensuring the quality of the outlet air meets applicable operational standards.

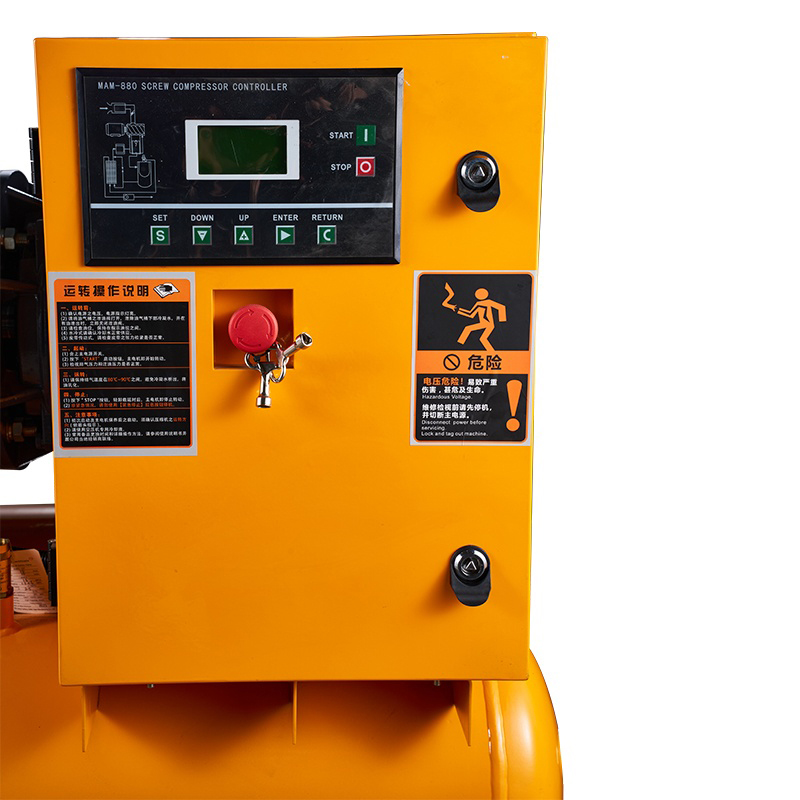

• Intelligent Control Unit: Centrally manages the compressor unit's start/stop logic, pressure settings, thermal protection, and fault alarms; it features an intuitive user interface that supports the configuration and real-time monitoring of key operational parameters.

Comparison: Dual-Tank Direct-Drive Integrated Model vs. Traditional Split-System Solution

The table above serves as a comparative reference for general application scenarios. Specific equipment selection recommendations should be based on a comprehensive assessment of on-site air demand, installation conditions, and budgetary constraints.

Applicable Industries and Typical Scenarios

Thanks to its features of stable air supply and integrated design, the dual-tank direct-drive integrated screw air compressor offers significant value and suitability in the following industrial sectors and scenarios:

• Machining & Assembly: Frequent use of pneumatic tools demands high stability in air supply pressure; the dual-tank buffer effectively prevents pressure fluctuations from compromising machining precision.
• Painting & Surface Treatment: Continuous spraying operations require a steady volume of air supply; the dual-tank design helps minimize paint film quality issues caused by pressure fluctuations.
• Electronics Assembly Lines: These lines often have specific requirements regarding air purity; the integrated drying and filtration module ensures high-quality air supply right from the source.
• Automotive Repair Stations: With multiple workstations operating simultaneously, air demand can fluctuate significantly; the dual-tank air storage structure provides a more robust and reliable buffer to meet these varying demands.
• Food & Packaging Industry: Requires a dry and clean air source to power pneumatic packaging machinery; the integrated solution simplifies system management and maintenance complexity.
